Guide: ceiling height

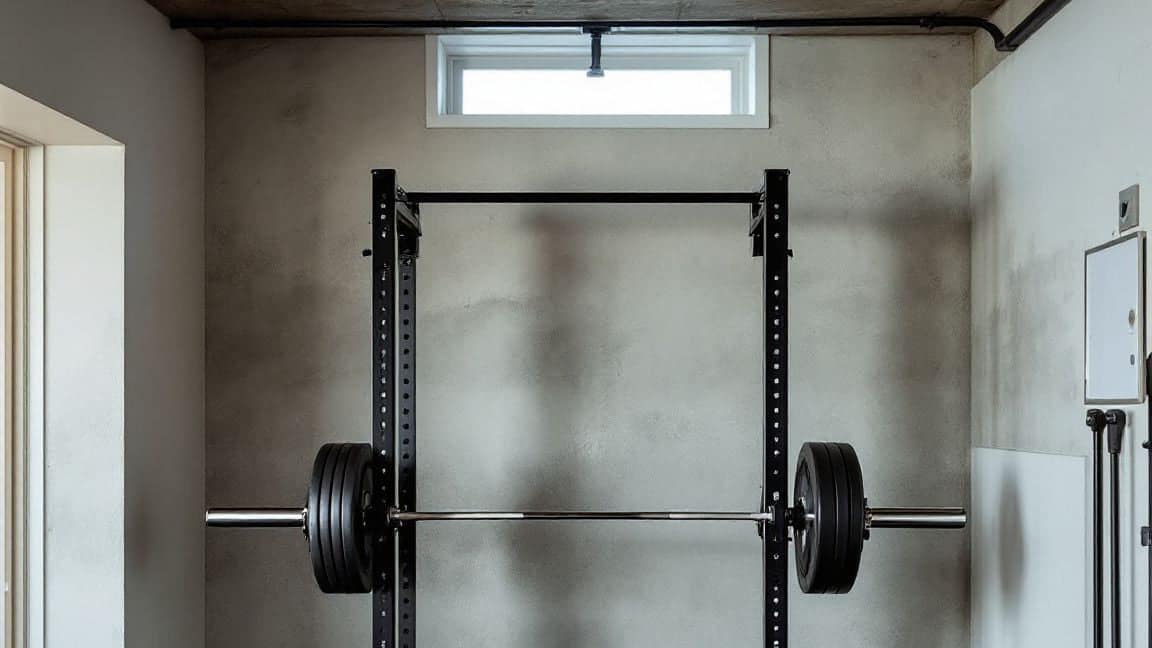

How much ceiling does a home gym rack need?
Three numbers decide it: the rack's height, the pull-up bar's height, and how high your hands and the plates go when you press overhead.
- 71-92.3 in
- Rack heights from three makers
- 3.7-25 in
- Room left under an 8 ft ceiling
Merchant spec tables, read Oct 2, 2026; our arithmetic.
On this page
Measure the room, then the lift
REP's own advice is the right order of work: measure ceiling height and floor area, leave clearance for pull-ups and overhead presses, and allow for barbell length, bench movement and plate storage11.
The table shows how much room each rack leaves under an 8 ft ceiling. The calculator below covers the press.
Published rack and pull-up bar heights
| Rack | Overall height | Pull-up bar height | Room under 8 ft (96 in) |
|---|---|---|---|
| Titan T-2 Series1 | 71 in | 69 in | 25 in |
| Titan X-3 Series (80 in)2 | 80 in | 76 in | 16 in |
| Titan T-3 Series (82 in)3 | 82 in | 78 in | 14 in |
| Titan T-3 folding (82 in)4 | 82.375 in | 80 in | 13.6 in |
| REP PR-11005 | 85 in | Not stated by the source | 11 in |
| TITAN Series (90 in)6 | 90 in | 84 in | 6 in |
| Rogue Bolt-Together R-37 | 90 3/8 in | Not stated by the source | 5.6 in |
| Rogue RML-3W8 | 90.375 in uprights | Not stated by the source | 5.6 in |
| Titan T-3 Series (91 in)9 | 91 in | 88 in | 5 in |
| REP PR-410010 | 92.3 in uprights | Not stated by the source | 3.7 in |
| Source | Spec tablesRead Oct 2, 2026 | Spec tablesRead Oct 2, 2026 | Our arithmeticRead Oct 2, 2026 |
Heights from each merchant's spec table, October 2, 2026. The last column is our arithmetic: 96 in minus the overall height. A dash means the page did not state the number.
Pull-ups: the bar height is only half of it
At the top of a pull-up your head is above the bar. To check, hang from a bar of the same height and have someone measure from the floor to the top of your head at the top of the movement. That measurement has to fit under the ceiling, with a margin you are comfortable with.
The bar heights above run from 69 in to 88 in19. If your ceiling is close to the bar, REP notes that the PR-1100's pull-up bar can be inverted to lower the rack's height5.
Ceiling needed for a standing overhead press
Enter your own measurements. The result is the height the top of the plates reaches with your arms locked out.
- The bar sits roughly in your palms at lockout, so the plates rise about half their diameter above your reach. Our approximation, not a merchant's figure.
- The defaults are examples only. Measure your reach and read the plate diameter on your plates' product page.
- Add your own safety margin above the result. Rubber flooring raises you by its thickness (3/8 in for REP's rubber tiles).
Top of the plates at lockout
93 in
Our arithmetic from your inputs.
Before you order
Step 1
Measure at the rack's spot
Below beams, lights, fans and the garage door track, not at the room's highest point.
Step 2
Allow for assembly
Uprights are often tilted up after bolting. Ask the merchant how much clearance assembly needs.
Step 3
Add the floor
Flooring adds thickness under the rack and under you.
Step 4
Follow REP's checklist
Ceiling, floor area, pull-up and press clearance, bar length, bench movement and plate storage11.
Sources
- T-2 Series Power Rack
- X-3 Series Bolt Down Power Rack 80 in x 24 in
- T-3 Series Power Rack 82 in x 24 in
- T-3 Series Folding Power Rack
- PR-1100 Power Rack
- TITAN Series Power Rack 90 in x 36 in
- Bolt-Together R-3
- RML-3W Fold Back Wall Mount Rack
- T-3 Series Power Rack 91 in x 24 in
- PR-4100 Folding Squat Rack
- Power racks collection (FAQ)
About this page
We do not earn anything from purchases today. Every product link is a plain link to the merchant's own page, without an affiliate code. We may join merchants' affiliate programs in the future, and this notice will say so before that changes.
Prices, dimensions and shipping belong to each merchant and can change. The merchant's own page is the final word on price, availability and terms.
GymFloor Planner compares published dimensions. We have not installed or lifted on this equipment; measure your own room and follow the maker's installation instructions.
