Short power racks

Power racks for basements and low ceilings

Basements and low garages often leave 7 to 8 feet. These three racks stand 71 to 82 inches tall.

71-82 in
Overall height, three Titan racks
From $399.97
Titan T-2, 71 in, listed Oct 2, 2026

Titan Fitness spec tables, read Oct 2, 2026.

Compare the threeCheck your ceiling

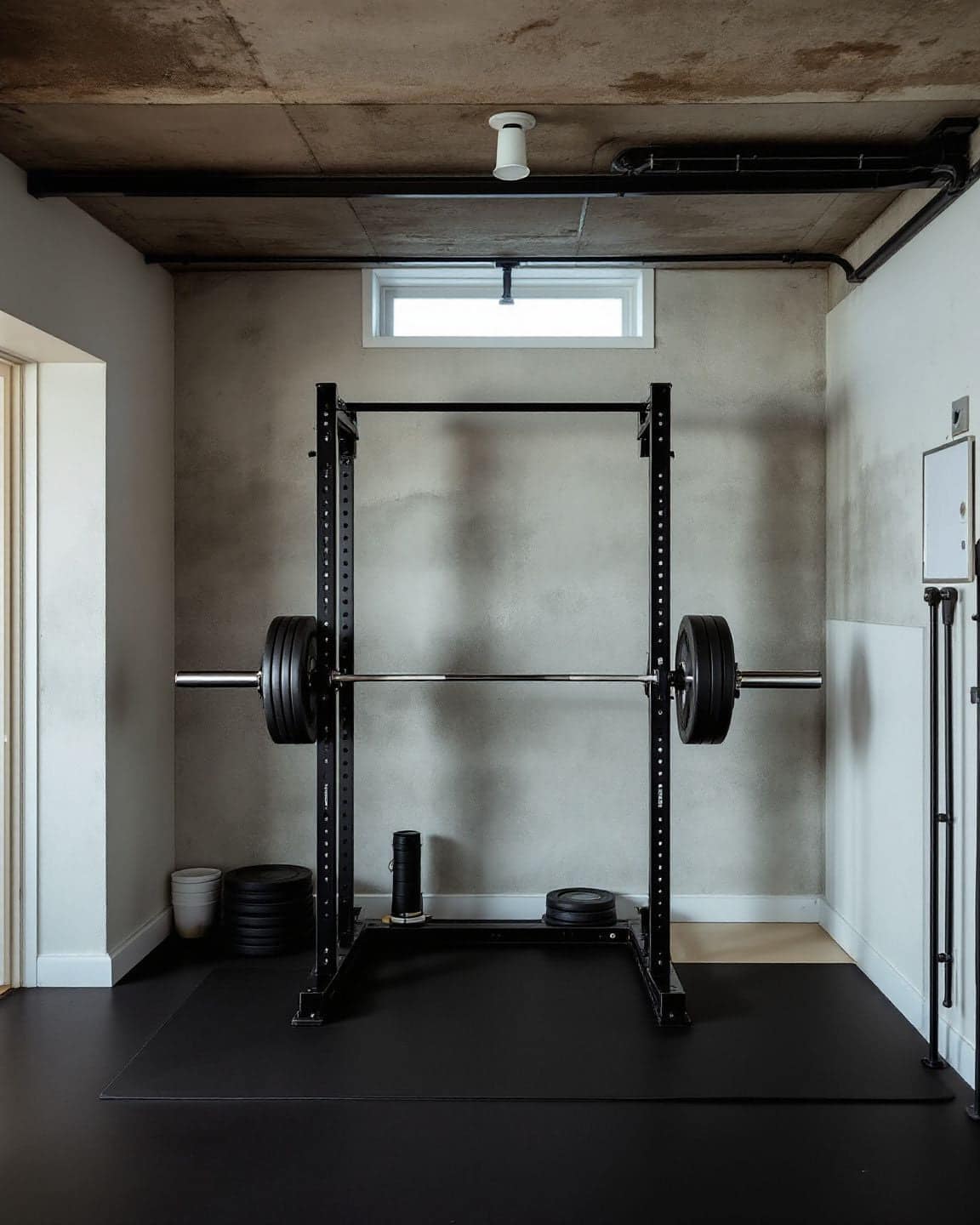

A compact squat rack with a loaded barbell in a low-ceiling basement gym.
On this page
  1. Key facts
  2. Where to start
  3. What a short rack gives up
  4. Short racks side by side
  5. See them on the maker's site
  6. Before a short rack comes home
  7. Low-ceiling questions
  8. Sources

Key facts

  • The Titan T-2 stands 71 in with a 69 in pull-up bar1.
  • The X-3 and T-3 run 80 and 82 in, with bars at 76 and 78 in23.
  • Both 24 in deep racks take about 33 x 54 in of floor23.
  • Under a 7 ft (84 in) ceiling all three fit on paper; the 82 in rack leaves 2 in.

Where to start

Where to start
If you are askingStart withLink
Ceiling under 7 ft?Titan T-2, 71 in tallCompare
Want the smallest footprint?X-3 or T-3, about 33 x 54 inCompare
Want to bolt it down?Titan X-3 bolt-down, 80 inSee Titan
Not sure of your clearance?Measure, then use the press calculatorRead the guide

What a short rack gives up

Pull-ups. A lower rack means a lower bar: 69 in on the T-2 and 76 to 78 in on the X-3 and T-3123. If your feet touch the floor while hanging, you will need to bend your knees for pull-ups.

Steel and attachments. The T-2 is built from 2 x 2 in 14-gauge steel1; the X-3 and T-3 list their own depth and height options on their pages23. Check that any attachment you want names your rack series on its page.

Leave a gap above. Bolting a rack down or adding a pull-up bar needs room to work. Measure the ceiling where the rack will stand, below beams and lights, and keep some space above the uprights.

Short racks side by side

RackOverall heightPull-up barFootprintListed price
Titan T-2 Series (71 in)171 in69 in57 x 50 in$399.97
Titan X-3 bolt-down (80 in, 24 in deep)280 in76 in33 x 54 in$639.97
Titan T-3 Series (82 in, 24 in deep)382 in78 in54 x 32.75 in$519.97
SourceTitan spec tablesRead Oct 2, 2026Titan spec tablesRead Oct 2, 2026Titan spec tablesRead Oct 2, 2026Titan product pagesRead Oct 2, 2026

Footprints as the merchant writes them. Titan showed each price reduced from a higher regular price on October 2, 2026; check the page for today's price. REP's short PR-1050 page now redirects to its rack collection, so it is not listed.

See them on the maker's site

How these links work: each button opens the merchant's own product page. We are not paid for these links today; we may earn a commission from purchases in the future.

Good for ceilings from about 7 ft

Titan T-2, X-3 and T-3 short racks

Heights
71, 80 and 82 in
Pull-up bars
69, 76 and 78 in
Titan T-2 Series power rack (71 in tall)
$399.97 (71 in)
Titan T-3 Series power rack (82 in tall, 24 in deep)
$519.97
Titan X-3 Series bolt-down power rack (80 in tall, 24 in deep)
$639.97
Checked
Oct 2, 2026
See prices on Titan FitnessOpens Titan Fitness's site. Not a referral link.

Also on Titan Fitness's site

What to check before you buy
  • Ceiling height where the rack will stand, below beams and lights
  • Shipping and assembly in the cart total
  • Which attachments name this rack series

Before a short rack comes home

  • Measure at the rack's spot

    Below beams, ducts and lights, not at the room's highest point.

  • Allow for assembly

    Uprights are often tilted up after bolting. Ask the merchant how much room that needs.

  • Plan pull-ups

    At 69 to 78 in, most adults hang with bent knees13.

  • Count the floor

    Flooring under the rack takes height from the gap above it.

Low-ceiling questions

My ceiling is 7 feet (84 in). Which of these fit?

All three are shorter than 84 in on paper (71, 80 and 82 in)123. With 82 in you have 2 in to spare, which may not be enough to tilt the uprights up during assembly. Ask the merchant about assembly clearance first.

Can I press overhead in a short rack?

Usually not inside it, and maybe not beside it. Your reach plus half a plate's diameter has to fit under the ceiling. Use the calculator in the ceiling height guide.

Sources

  1. T-2 Series Power RackTitan Fitness, read Oct 2, 2026
  2. X-3 Series Bolt Down Power Rack 80 in x 24 inTitan Fitness, read Oct 2, 2026
  3. T-3 Series Power Rack 82 in x 24 inTitan Fitness, read Oct 2, 2026

About this page

We do not earn anything from purchases today. Every product link is a plain link to the merchant's own page, without an affiliate code. We may join merchants' affiliate programs in the future, and this notice will say so before that changes.

Prices, dimensions and shipping belong to each merchant and can change. The merchant's own page is the final word on price, availability and terms.

GymFloor Planner compares published dimensions. We have not installed or lifted on this equipment; measure your own room and follow the maker's installation instructions.
